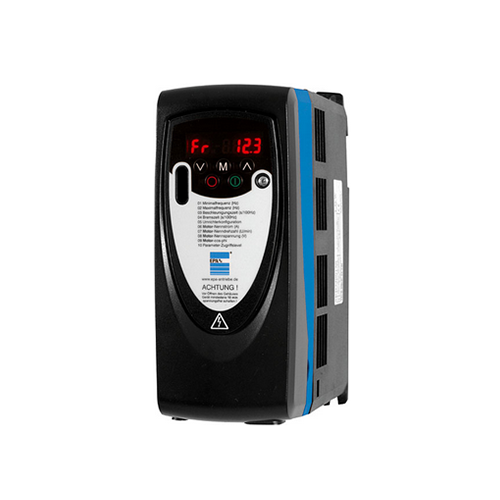

| Item |
Specification |
| Overload Capacity |
150% for 60 sec. (HD), 120% for 60 sec. (ND) |
| Output Frequency |
0~400 Hz (higher frequencies available with custom software) |
| Control Methods |
V/F, Open Loop Current Vector |
| Motor Types |
Induction |
| Protective Design |
IP20/NEMA1/FLANGE (NEMA 12 backside) |
| Ambient Operating Temperature |
-10 to +50°C (Chassis Installation) |
| -10 to +40°C (Chassis with zero side clearance, or Type 1) |
| Braking Transistor |
Standard through 50HP (ND), 40HP (HD) |
| Global Certification |
UL, CSA, CE, C-Tick, RoHS |
| Standard I/O |
(6) multi-function digital inputs (24Vdc) |
| (3) multi-function analog inputs (0 +/- 10 VDC, 4-20 mA) |
| (1) fault relay output (form C) |
| (2) multi-function analog output (0 +/- 10 VDC, 4-20mA) |
| I/O Expansion |
3 Analog Inputs -10 to +10V, 13 bit plus sign, 4 to 20mA |
| 16 Digital Inputs (+24V for BCD speed reference) |
| 2 Analog Outputs (-10 to +10V, 11 bit magnitude) |
| 8 Digital Outputs (6 transistor, 2 relay) |
| Network Communication |
Built-in: Modbus RTU, RS-422/485, 115 kbps |
| Optional: EtherNet IP, DeviceNet, Modbus TCP/IP, PROFINET, PROFIBUS-DP, MECHATROLINK-II |
| Speed Control Range |
1500:1 Closed Loop Vector (IM and PM Motors) |
| 200:1 Open Loop Vector (IM Motors) |
| 100:1 Open Loop Vector (PM Motors) |
| Speed Control Accuracy |
£ 0.02%: Closed Loop Vector; ≤ 0.2%; Open Loop Vector |
| Speed Response |
≥ 60 Hz: Closed Loop Vector; ≥ 10 Hz: Open Loop Vector |
| Torque Response |
≥ 300 Hz: Closed Loop Vector |
| Programming |
IEC 63113 |
